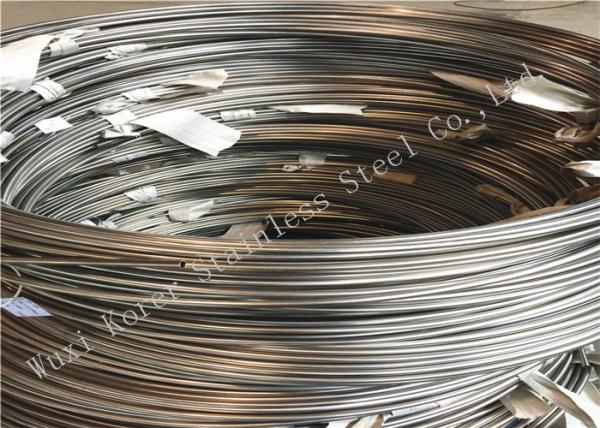

Round Welded Stainless Steel Coil Tubing With ASTM A249 , Small Diameter SS Pipes

    Buy cheap Round Welded Stainless Steel Coil Tubing With ASTM A249 , Small Diameter SS Pipes from wholesalers

    Buy cheap Round Welded Stainless Steel Coil Tubing With ASTM A249 , Small Diameter SS Pipes from wholesalers
    • Buy cheap Round Welded Stainless Steel Coil Tubing With ASTM A249 , Small Diameter SS Pipes from wholesalers

    Round Welded Stainless Steel Coil Tubing With ASTM A249 , Small Diameter SS Pipes

    Ask Lasest Price
    Brand Name : KORER
    Model Number : Coil Tube
    Certification : ISO 9001 And Manufacture License Of Pressure Tube
    Price : Negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10000 Metric Tons Per Year
    Delivery Time : 15Days – 45Days Or Depends on the quantity
    • Product Details
    • Company Profile

    Round Welded Stainless Steel Coil Tubing With ASTM A249 , Small Diameter SS Pipes

    Round Type Welded Stainless Steel Coil Tubing With ASTM A249,Small Diameter

    Quick details:

    • Item: Welded Stainless Steel Coil Tubing
    • Grade: AISI / ASTM / DIN / EN
    • Standard: ASTM A249
    • Outer Diameter : 6mm-25.4mm
    • Wall thickness : 0.3mm-2.5mm


    Description:

    A249 Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and condenser tubes.

    ◆Materail:TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317L, TP321

    ◆Welding Method:TIG

    ◆Chemical Composition:Acc.to A249 and A480

    ◆Heat Treatment:Bright Annealing temperature 1040℃

    ◆Straightness:0.8mm/900mm

    ◆Tolerance:OD Acc.to A1016/A1016M, WT +/-10%

    ◆Mechanical Property:Tension Test, Flattening Test, Flange Test, Reverse-Bend Test, Hardness Test, Hydrostatic or Other Nondestructive Test, Grain Size, Reverse-Bend Test, Hardness Test

    ◆Intergranular Corrosion:Acc.to the Buyer's Requirements


    Chemical Compositions:

    Grade

    Chemical Composition(%)

    Remark

    C≤

    Mn≤

    P≤

    S≤

    Si≤

    Cr

    Ni

    Mo

    N

    Cu

    304

    0.08

    2.00

    0.045

    0.030

    0.75

    18.0~20.0

    8.0~10.50



    0~0.1





    304L

    0.030

    2.00

    0.045

    0.030

    0.75

    18.0~20.0

    8.0~12.0



    0~0.1





    304H

    0.04~0.10

    2.00

    0.045

    0.030

    0.75

    18.0~20.0

    8.0~10.50



    0~0.1





    310S

    0.08

    2.00

    0.045

    0.030

    1.50

    24.0~26.0

    19.0~22.0









    321

    0.08

    2.00

    0.045

    0.030

    0.75

    17.0~19.0

    9.0~12.0



    0~0.1



    Ti≥5×(C+N),
    ≤0.70

    316

    0.08

    2.00

    0.045

    0.030

    0.75

    16.0~18.0

    10.0~14.0

    2.0~3.0

    0~0.1





    316L

    0.030

    2.00

    0.045

    0.030

    0.75

    16.0~18.0

    10.0~14.0

    2.0~3.0

    0~0.1





    317

    0.08

    2.00

    0.045

    0.030

    0.75

    18.0~20.0

    11.0~15.0

    3.0~4.0

    0~0.1





    317L

    0.030

    2.00

    0.045

    0.030

    0.75

    18.0~20.0

    11.0~15.0

    3.0~4.0

    0~0.1





    2205

    0.030

    2.00

    0.030

    0.020

    1.00

    21.0~23.0

    4.50~6.50

    2.50~3.50

    0.08~0.20





    430

    0.12

    1.00

    0.040

    0.030

    1.00

    16.0~18.0

    ≤0.75









    409

    0.08

    1.00

    0.045

    0.030

    1.00

    10.5~11.7

    ≤0.50







    Ti≤0.75

    439

    0.07

    1.00

    0.04

    0.030

    1.00

    17.0~19.0

    ≤0.50



    0~0.04



    Ti≥0.20+4×(C+N);
    ≤1.10
    Al≤0.15

    1.4301

    0.07

    2

    0.045

    0.015

    1

    17.0~19.0

    8.0~10.50



    0~0.1





    1.4307

    0.03

    2

    0.045

    0.015

    1

    17.5~19.5

    8.0~10.0



    0~0.1





    1.4401

    0.07

    2

    0.045

    0.015

    1

    16.5~18.5

    10.0~13.00

    2.0~2.5

    0~0.1





    1.4404

    0.03

    2

    0.045

    0.015

    1

    16.5~18.5

    10.0~13.00

    2.0~2.5

    0~0.1





    1.4541

    0.08

    2

    0.045

    0.015

    1

    17.0~19.0

    9.0~12.00







    Ti≥5×C,≤0.70

    1.4436

    0.05

    2

    0.045

    0.015

    1

    16.5~18.5

    10.5~13.0

    2.50~3.00







    1.4438

    0.03

    2

    0.045

    0.015

    1

    17.5~19.5

    13.0~16.0

    3.00~4.00








    Applications:

    Widely Used In Petroleum, Foodstuff, Chemical Industry, Construction,Electric Power,Nuclear Energy,Biotechnology, Machinery, Papermaking,Shipbuilding,Boiler Fields Etc

    Specification:

    1)Item: Welded Stainless Steel Coil Tubing
    2)Grade: AISI / ASTM / DIN / EN
    3)Standard: ASTM A249
    4)Delivery Condition: Bright Anneal Or Anneal&Pickled
    5)Outer Diameter : 6mm-25.4mm
    6)Wall thickness : 0.3mm-2.5mm
    7)Length: max.200M or Custom
    8)Price Term:EX-Work,FOB,CNF,CFR,CIF
    9)Delivery Time:15 -45 Days Or Depend on Quantity.
    10)Certificate:ISO / PED

    Advantage of Korer’s Welded Stainless Steel Pipe:

    1. Professional manufacturer of Welded SS Pipe.
    2. Complete quality test & control System.
    3. Best Price Based On Good Quality and Prompt Delivery Time..
    4. Good After-Sale Service.
