Hot Rolled Galvanized Steel Coil / HDGI Zinc Coated Steel Sheets
ASTM A653
Quick Detail:
Thickness /mm | 0.25-5.0 | Zinc Coated /(g/m2) | 50-350 | Coil Weight /kg | 25-1000 |
Width/mm | 15mm-300mm ,900mm-1500mm or according customers’ requirements |
Technique | Hot Rolled | Spangle | regular, min , zero and big |
Standard | JIS G3302/94, JIS G3313, ASTM A653, EN 10142, DX 51D,GB/T 2518-88, ISO 6316:2000, ASTM A53, BS1387-1985, GB/T3091-93-2008 etc |
Steel Grade | Q195-Q235, Q195, Q215, Q235, Q345, SS400, ST37-2, STK400, STK500,
16Mn, SGCC,SPCC,DX51D, SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z, DX56D+Z, SGCC(DX51D+Z),SGCC(DX53D+Z),SGCE(DX54D+Z) , S350GD ,DX53D+Z, DX54D+Z etc |
Specifications :
We are the manufacturer of steel pipe/tube and steel coils. Supply
high quality various sizes products,
the cheapest price and the best service for you. The list size we
often produce for your reference.
We also always have the huge ready stock for sell.
Commodity | Zinc Coated Steel Coils / HDGI Coils / GI Coils / Sheets / Strips
For Kitchen Appliances |
Thickness | 0.25-5.0mm |
Width | 15mm-300mm ,900mm-1500mm or according customers’ requirements |
Zinc Coated | 50g/m2-350g/m2 or according customers’ requirements |
Tolerance Width | +0.1mm/-0.1mm |
Tolerance Thickness | +0.03mm/-0.03mm |
Coil Weight | 25kg-1000kg or According Customers’ requirements |
Tensile Strength | 280Mpa-950Mpa |
Elongation | 15%-20% or >20% |
Inner Diameter | 80mm-610mm or According Customers’ requirements |
Surface Treatment | 1.Hot Dipped Galvanized, Regular Spangle, Slight Oiled or Non
Oiled, Dry 2.Surface Waxed and Edges Debarred |

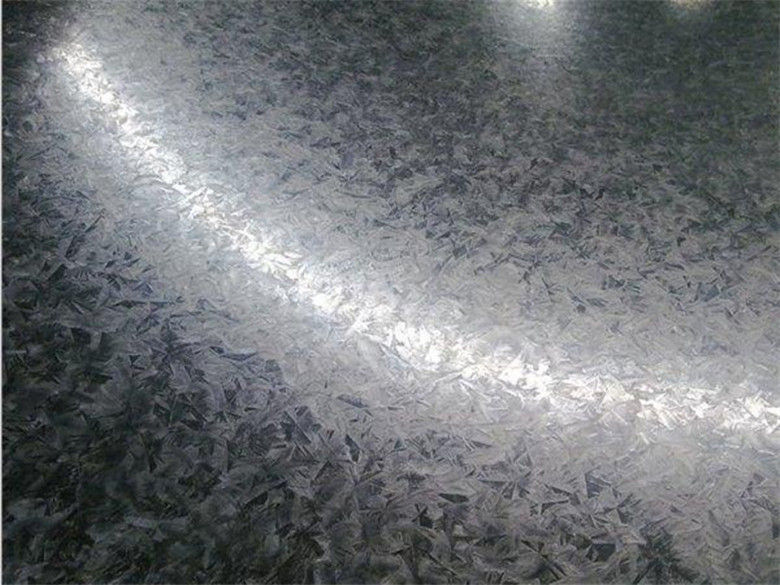

Spangle | regular, min , zero and big |
Price | Get the Latest Price |

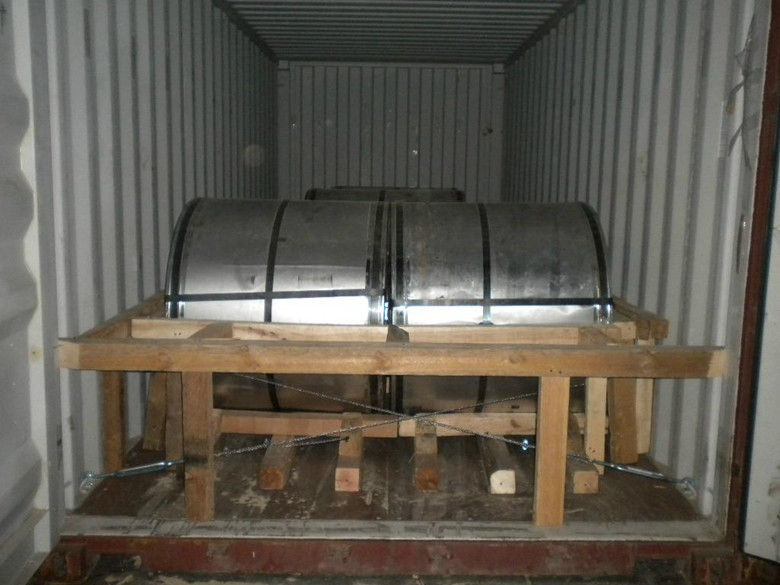

Package | Inner is protect humidity-proof waw paper, Medium is plastic film, Outer is sackcloth or compound paper packing, or as per customer's requirements |
Port | Tianjin Port Xingang Port |
Lead Time | 15-20 days after receiving 30%T/T Deposit or L/C At Sight. |
Payment Term | T/T ,L/C At sight ,Western Union,D/A,D/P |
MOQ | 20Ton/Tons |
Supply Ability | 400,000 Ton/Tons/MT per Year |
Application | Galvanized Steel Coils/Strips/Sheets are used to cut into narrow
galvanized steel sheets/strips . Galvanized steel Coils / Strips / Sheets / GI Steel Coils are
generally used to make pipes, such as: greenhouse pipes, water pipes, heating pipes,
gas pipes; also can be used in architecture, light industry,automobile,
agriculture and animal husbandry and fishery and commercial industries. Galvanized steel Coils / Strips / Sheets / GI Steel Coils are
mainly used in the manufacture of corrosion protection of industrial and civil
building roof panel, roof grate in the construction industry . In the light industry,
Galvanized steel Coils / Strips / Sheets / GI Steel Coils are used to manufacture the
shell of household electrical appliance, civil chimney, kitchen appliances and so on.
In the automotive industry, Galvanized steel Coils / Strips / Sheets / GI Steel Coils
are mainly used in the manufacture of anti-corrosive parts of car. In agriculture and Animal Husbandry Fishery, they are mainly used
as freezing processing tools of grain storage, meat and aquatic
products. In business, the are mainly used as storage and transportation,
packaging tools of materials. At the same time, They can also be used in the manufacture of steel
purlin (C, Z type steel), light steel keel, ceiling keel. |
Remark | The materials of these specifications are Q195-Q235,Q195L material
and Q345B material can be customized according customers’ requirements, the price for these customized specifications is negotiable. We can supply any custom dimension, specification zinc coated and
other international standards to fit your needs. Help you to control the cost to maximize the profit. Hope to cooperate with you in the early future. |
Contact Info. |
Mr. Wang International Trade Sales Manager Tel: +86-022-68729310 Your early reply will be highly appreciated |
Competitive Advantage:
We have our own Steel Strip / Steel Coils’s Open-flat Longitudinal
Cutting Processing Line.
Open-flat Longitudinal Cutting Processing is the process of making
steel coils / steel strips
or steel plate narrower and shorter .
We can cut the steel coils / steel trips or steel plate into any
specification you need.
Specification:
The width of Longitudinal Cutting is less than 1.8m or equal to
1.8m.
The thickness of longitudinal cutting is between 0.8mm and 12mm.
The width of Open-flat is less than 2m or equal to 2m.
The thickness of Open-flat is less than 16m or equal to 16m.
Hot-dip galvanized steel coils are produced by immersing steel in a
zinc bath.
An appropriate galvanizing process requires a pretreatment process
during which the steel passes
through different baths which prepare the surface for zinc coating.
In this stage, chemicals are used
to clean the surface of the steel. After the chemical treatment,
the steel coils pass through a bath of
melted zinc at temperatures around 460 ° C. The resulting uniform
coating is finished through a process
of skin-passing to provide smooth and shiny appearance of the
finished product.
To store for a longer period, the hot-dip galvanized coils can be
delivered with a final oil coating,
according to the customer’s demand. PROFILAND STEEL produces
hot-dip galvanized steel coils with
very good workability at further cold forming and bending processes.
We are also engaged in the products: Hot rolled steel pipe/tube,
Stainless welded steel pipe/tube, ERW steel pipes/tubes, SHS welded
steel pipe/tube, RHS welded steel pipe/tube, Galvanized steel
pipes/tubes, Round galvanized steel pipe/tube, Square galvanized
steel pipe/tube, Rectangular galvanized steel pipe/tube,
Pre-galvanized steel pipe/tube, Round pre-galvanized steel
pipe/tube, Square pre-galvanized steel pipe/tube, Rectangular
pre-galvanized steel pipe/tube, Seamless steel pipes/tubes,
Seamless carbon steel pipe/tube, Carbon steel seamless pipe,
Stainless seamless steel pipe/tube, Petroleum casing tubes/pipes,
API 5L steel pipe/tube, API 5CT steel pipe/tube, Spiral welded
steel pipes, Anti-corrosion pipe/tube, 3PE/3LPE/2PE/FBE
Anti-corrosion steel pipe, plastic coating and lining
anti-corrosion steel pipe, IPN 8710 non -poison lining
anti-corrosion steel pipe, Epoxy coal tar pitch coating
anti-corrosion steel pipe, Cement mortar lining anti-corrosion
steel pipe, Insulation pipe/tube, black jacket foaming layer
insulation steel pipe, yellow jacket PU foam insulation steel pipe,
PE casting + PU foam layer insulation steel pipe, hot rolled steel
in coils/sheets, galvanized steel coil, galvalume steel coil ,
pre-painted/color coated steel coil, steel strip and steel plate.
The application of our products covers oil, natural gas,
shipbuilding, chemical industries, environmental protection, boiler
making, water/air/steam heating/gas/oil conservancy, power, steel
structural products, building, our products are also used in mine
air pressure, drainage, drainage gas and slurry transportation etc.
Tianjin Xuanqusheng International Trading Co., Ltd has established
and maintains long term cooperation with numerous famous domestic
companies thanks to the management and technical strength of its
parent company.Our company now owns 16 production lines, 8
longitudinal shearing machines and 1 cold rolling mill, and
develops and exploits internal wall FBE and external wall 3LPE on
the steel pipes and stainless steel interlining welding technology,
both of them have got the patent of Tianjin . Our company has
advanced three production lines of internal wall FBE, external wall
heat complex three layers PE (can do the anti-corrosion treatment
on the steel pipes, diameter range from 32mm-2820mm, and length
from 5m to 18m, install the on-line electrical spark inspection
machine, thickness inspection instrument, on-line code spray,
inspection data stored on computer, which can keep and track for 5
years).The annual output is 400,000 tons. Our strong advantages in
resources have enabled us to supply products in complete range to
both domestic and international clients and meet their needs to
control the cost to maximize profit.
